Metrics for OpenSearch/Elasticsearch domains and S3 buckets now available in Cloud.gov logging system

The Cloud.gov team is excited to announce some new additions to the logging system that will allow customers to monitor their services more effectively:

• Comprehensive Elasticsearch/OpenSearch domain metrics to help teams monitor system performance and resource utilization for brokered domains
• A new metric that allows teams to easily track the size of their S3 buckets

Available S3 Metrics

Storage and Capacity Metrics

• Bucket Size in Bytes, metric name: BucketSizeBytes

Available OpenSearch/Elasticsearch Metrics

System Resource Metrics

CPU Utilization

These metrics help identify processing load and potential performance bottlenecks.

• Overall domain CPU usage, metric name: CPUUtilization
• Master node CPU usage, metric name: MasterCPUUtilization

Memory Pressure

These metrics monitor memory consumption and other potential memory-related issues.

• JVM Memory Pressure, metric name: JVMMemoryPressure
• Old Generation JVM Memory Pressure, metric name: OldGenJVMMemoryPressure
• Master Node Memory Pressure, metric name: MasterJVMMemoryPressure
• Old Generation Master Node Memory Pressure, metric name: MasterOldGenJVMMemoryPressure

Storage and Capacity Metrics

Free Storage Space

This metric helps track storage capacity and plan for scaling.

• Available storage in gigabytes, metric name: FreeStorageSpace

Threadpool Performance

Write Queue Metrics

• Write Queue Count, metric name: ThreadpoolWriteQueue
• Write Queue Rejected Requests, metric name: ThreadpoolWriteRejected

Search Queue Metrics

These metrics monitor background processing and potential system overload:

• Search Queue Count, metric name: ThreadpoolSearchQueue
• Search Queue Rejected Requests, metric name: ThreadpoolSearchRejected

Using the Services - S3 Dashboard

A quick way to view domain metrics is to:

1. Log in to the logging system
2. Click on “Dashboards” in the left sidebar menu

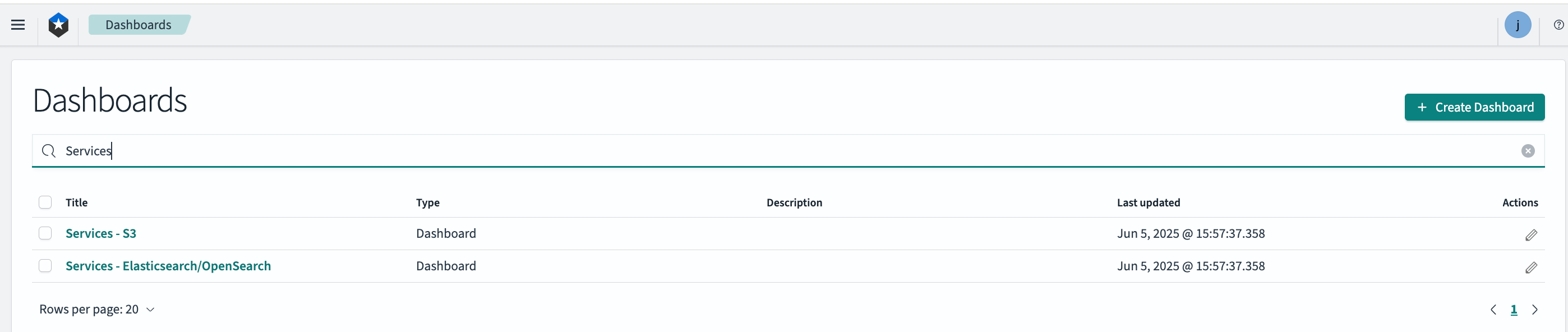

3. Enter “Services” in the search bar
4. Follow the link for “Services - S3”

Using the Services - Elasticsearch/OpenSearch Dashboard

A quick way to view domain metrics is to:

1. Log in to the logging system
2. Click on “Dashboards” in the left sidebar menu
3. Enter “Services” in the search bar
4. Follow the link for “Services - Elasticsearch/OpenSearch”

How to Search Metrics in the Logging System

Metrics are ingested into the logging system with the value @type: metrics , which provides an easy way to filter them.

To find your metrics in the logging system:

1. Log in to the logging system
2. Click on “Discover” in the left sidebar menu

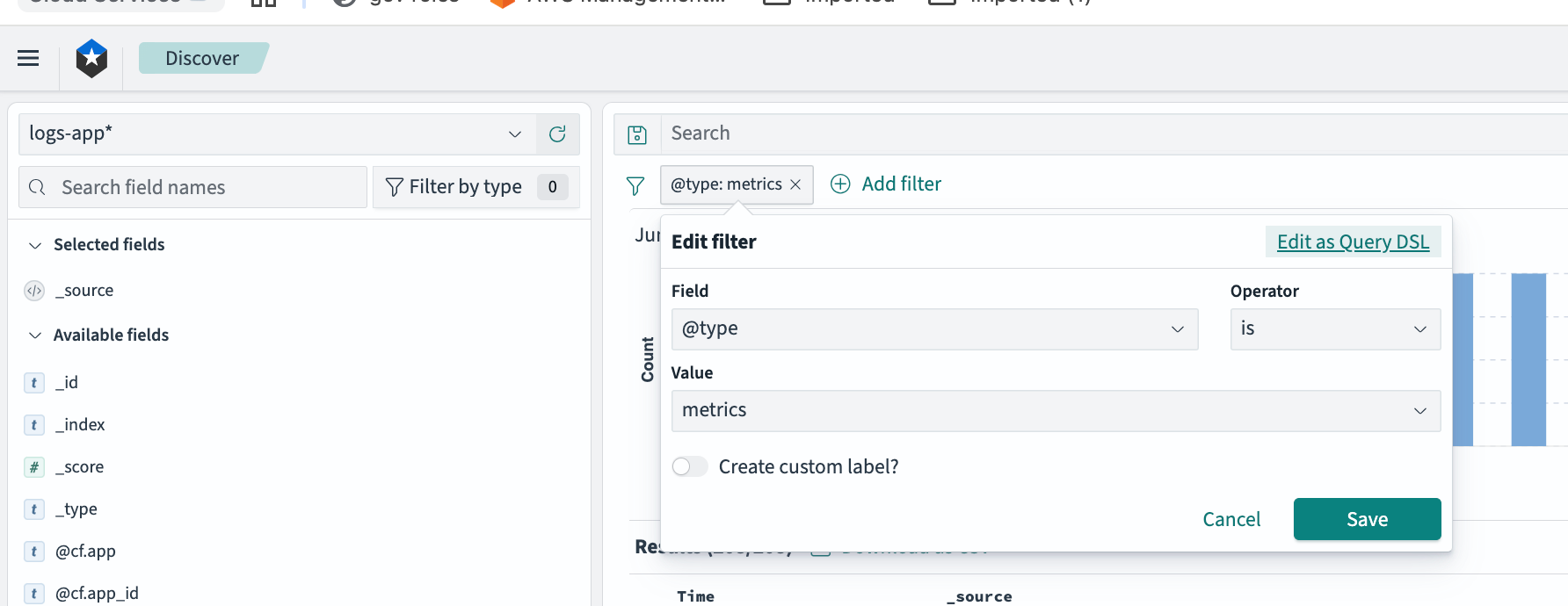

3. Add a filter for @type: metrics  to your log search

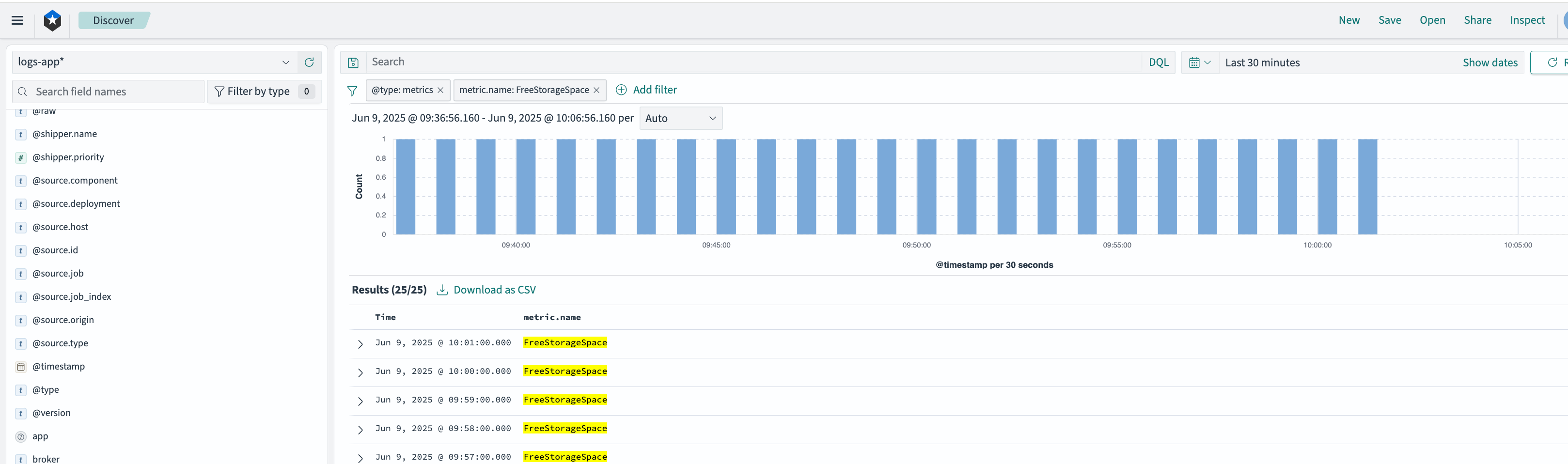

4. Apply additional filters on the metrics event fields as desired. For example, to filter for domain FreeStorageSpace, add a filter of metric.name: FreeStorageSpace :

Metrics Fields

The fields available on metrics records are:

• @cf.service_offering  - Type of service being monitored
• @cf.service_plan  - Specific service plan details
• metric.average  - Numeric value of the metric
• metric.name  - Name of the specific metric
• metric.unit  - Unit of measurement

How Metrics Are Ingested into the Logging System

An automated job runs every 10 minutes to pull metric events from the platform and ingest them into the logging system. AWS limits most metrics to a 2-minute delay. Thus, there could be up to a 12-minute delay before metric logs appear in the logging system.

Retention

Metric events are retained in the logging system for 12 months and in offline storage for an additional 18 months in accordance with M-21-31 guidelines.
